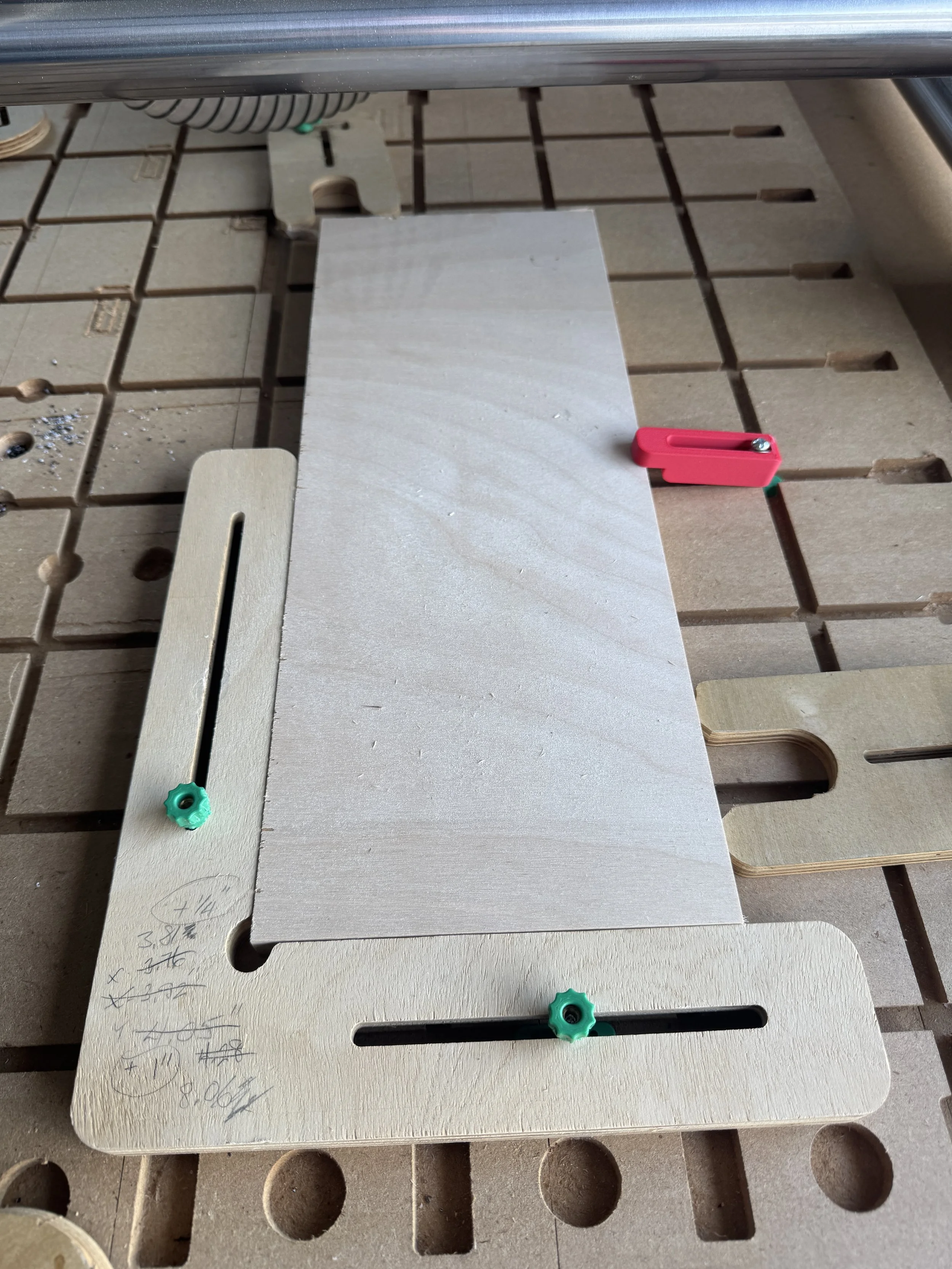

Working on your CNC machine and need some easy to use clamps for holding the workpieces? Here's the kit for you! A combination of hold downs to fit over the edge of the piece (Horseshoe and Straight Bumper clamps) and edge clamps, as well as round cam-type clamps. Multiple sizes and shapes, along with invaluable L clamps in 3 sizes to position workpieces reliably in the same position on your wasteboard.
Includes .svg, .dxf and .step for:
- L shaped clamps - 3 sizes

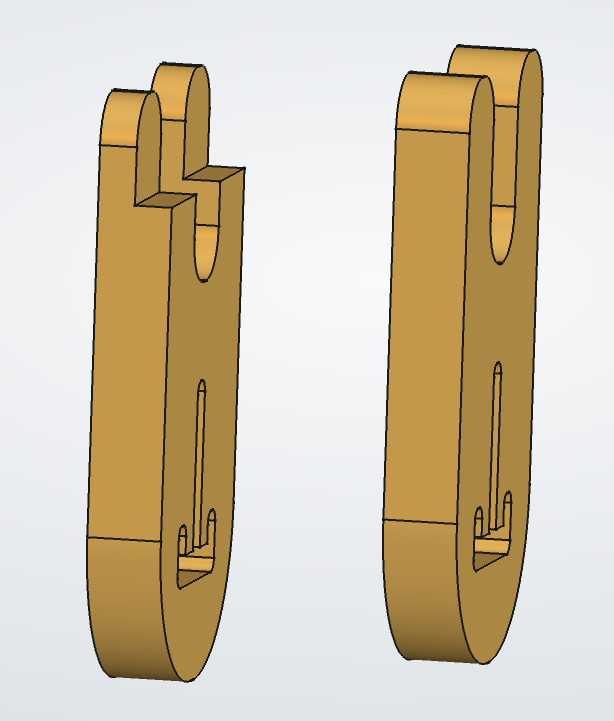

- Horseshoe clamps, with and without tongues
- Round cam clamps - 3 sizes

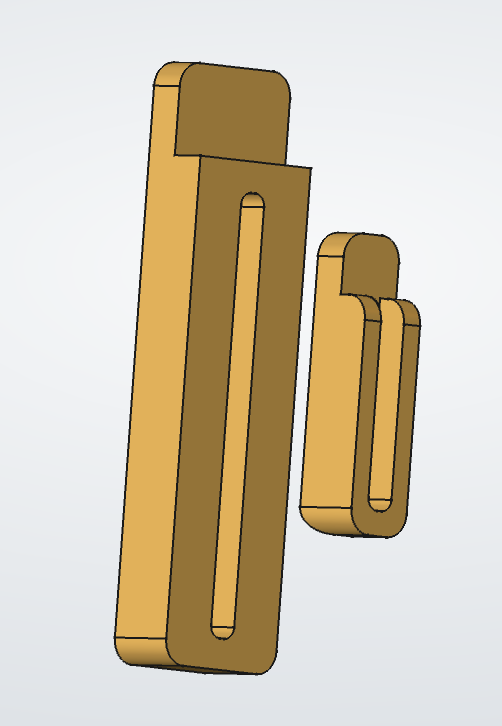

- Straight bumper clamps with tongues - 2 sizes
- PDF with descriptions and instructions
All profiles can be cut from any thickness wood you choose by adjusting on your CNC software. The .step files are designed for 3/4" wood for CNC cutting, or will create 3/4" thick clamps if 3D printed.
Holes and slots are 5/16" wide to accomodate T track bolts, Microjig dovetail clamp bolts, and 1/4" screws.
