CNC Workshop Drawer Insert – Caliper, Collet & Router Bit Organizer | SVG, DXF, PDF, AI, CRV & STL Digital Download

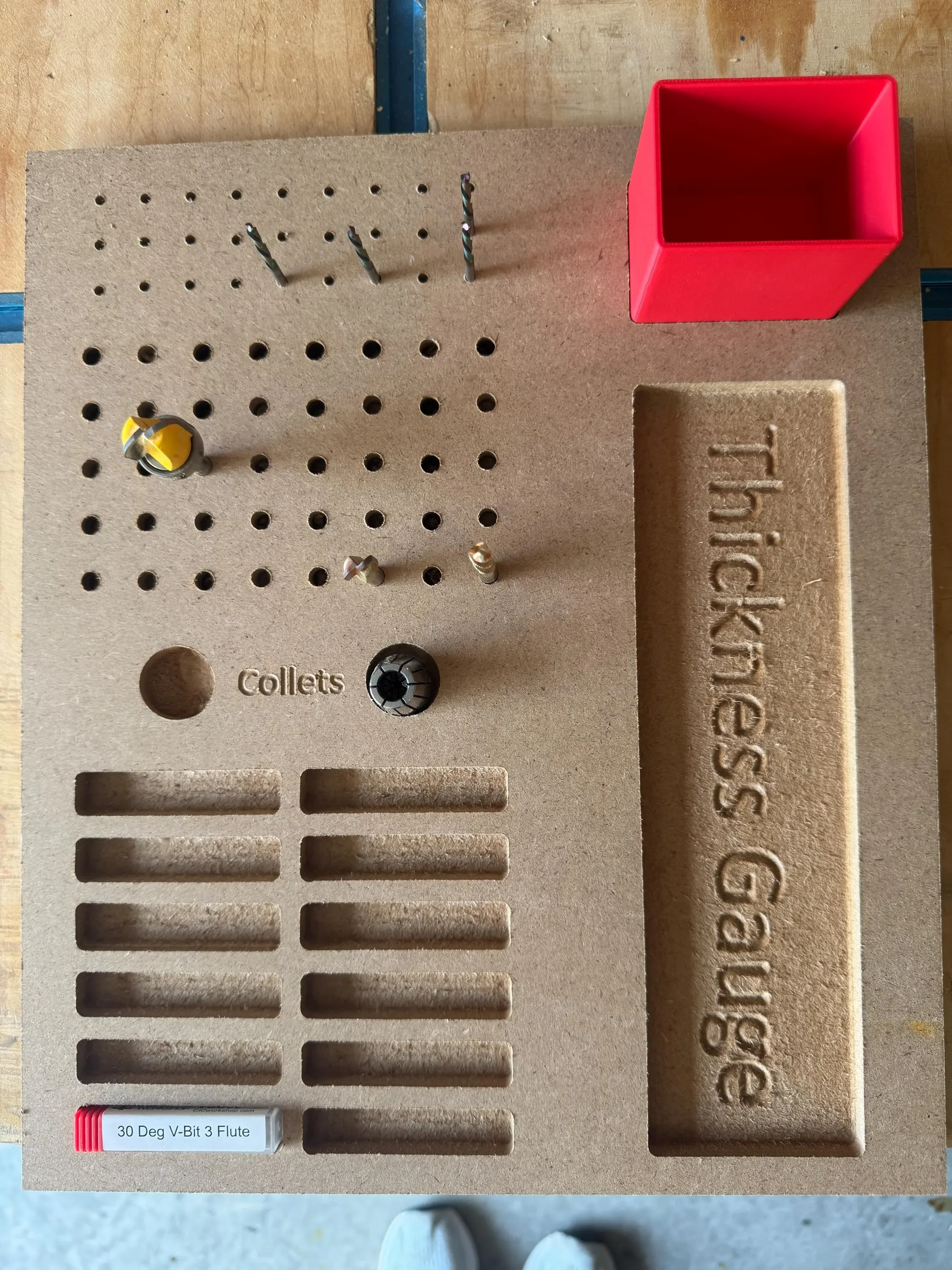

Keep your most-used CNC tools exactly where you need them. This drawer insert is designed specifically for the CNC workshop, putting your digital caliper, collets, and router bits in one tidy, always-ready spot.
Fits Most Workshop Drawers
At 12" × 14" × ¾", this insert is sized to drop right into a standard workshop drawer without modification. Cut it from a single piece of ¾" plywood or MDF and you're done.

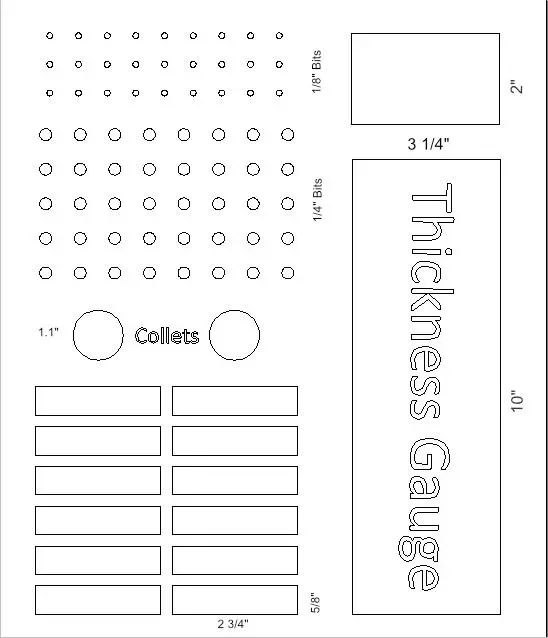

What It Holds:
📐 Digital caliper — dedicated slot
🔩 Collets (#2) — individual cutouts to keep them organized and easy to grab
🔧 ¼" router bits (#40) — dedicated section keeps your most-used bits upright and accessible
🔧 ⅛" router bits (#27) — separate section so sizes never get mixed up
📦 Bonus flex cutout — use as open storage as-is, or drop in the 3D-printed box (included .stl file for you to create) for smaller items like set screws, wrenches, or spare hardware.
What's Included:
.SVG: Use in Inkscape, Lightburn, Carbide Create, and more
.DXF: Use in VCarve, Fusion 360, AutoCAD, and most other CAM software
.PDF: Universal reference and scaling
.AI: Adobe Illustrator for custom edits
.STL: 3D print the bonus storage box on any FDM printer
.CRV: Vectric file to run and cut or to modify as you need
Why You'll Love It:
Cut from scrap ¾" plywood or MDF — no special materials needed
No joinery or complex operations — a straightforward beginner-friendly CNC project
Fully customizable — the .AI file makes it easy to resize cutouts for your specific tools; if you use Vectric products, the .CRV file is there for you to customize as you wish.
The included STL box is a perfect companion project for anyone with a 3D printer
Please Note: This is a digital download only — no physical product will be shipped. A CNC router and CAM software are required to cut the insert. A 3D printer is needed to produce the optional storage box.
